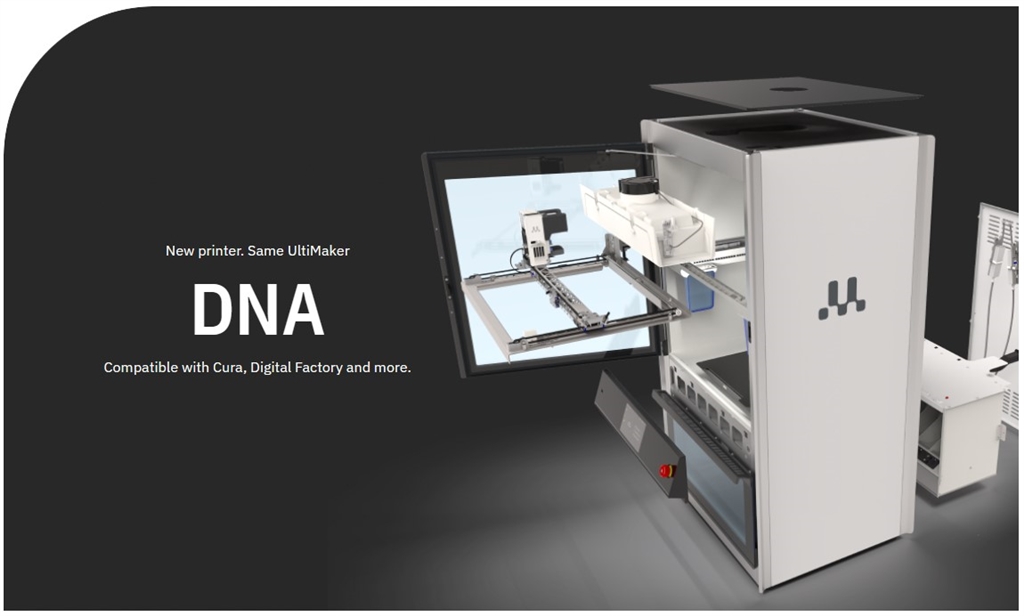

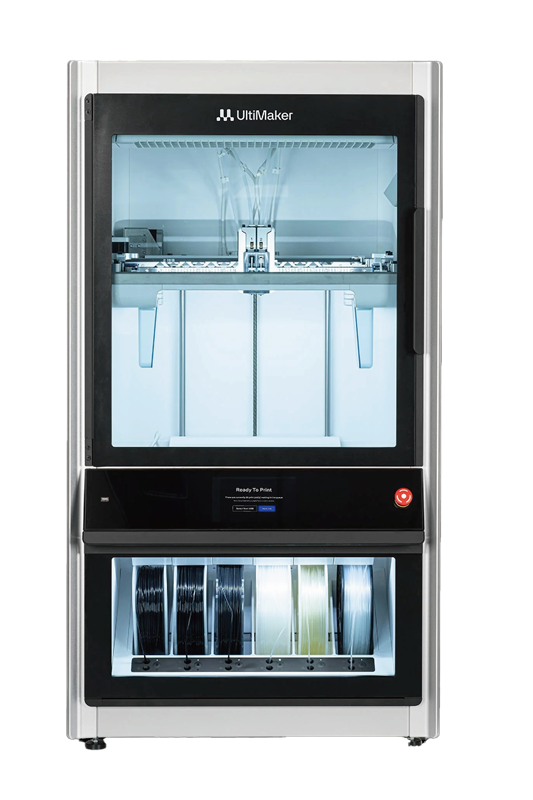

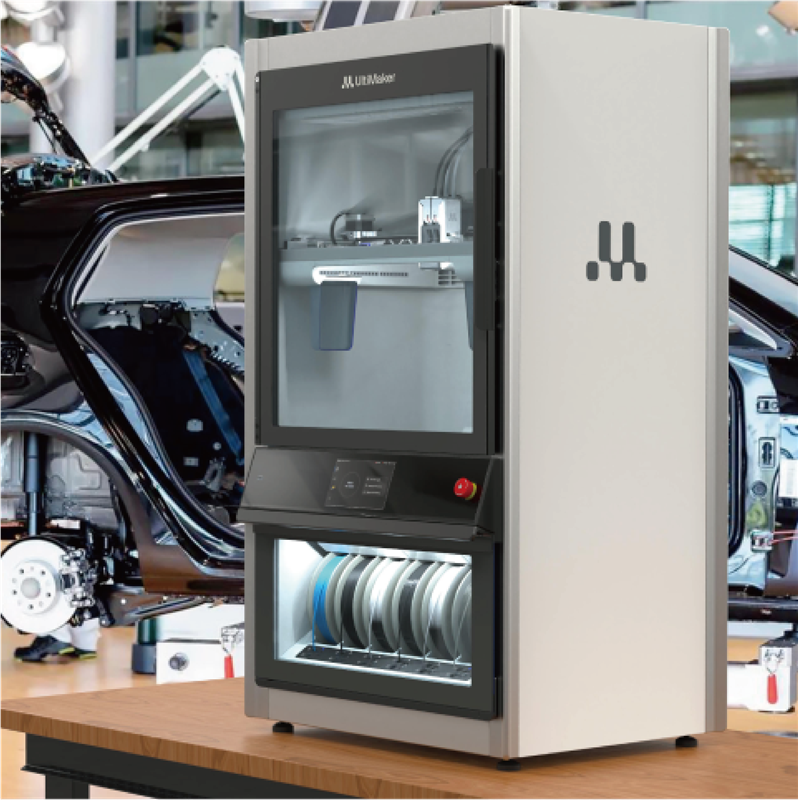

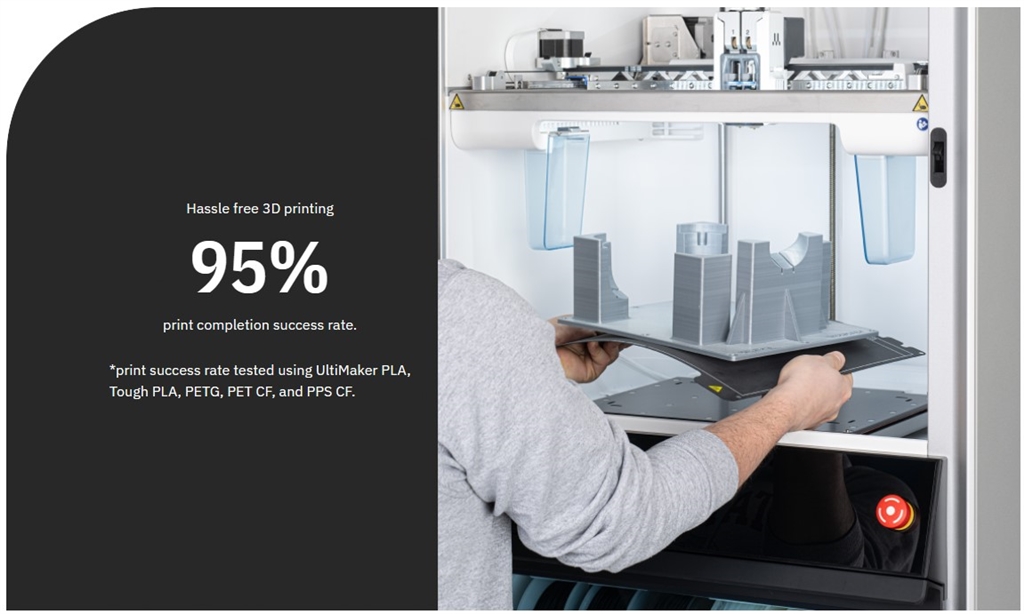

UltiMaker Factor 4 3D Printer
Industrial-grade performance. Reliable and repeatable results.
UltiMaker Factor 4, our new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running.

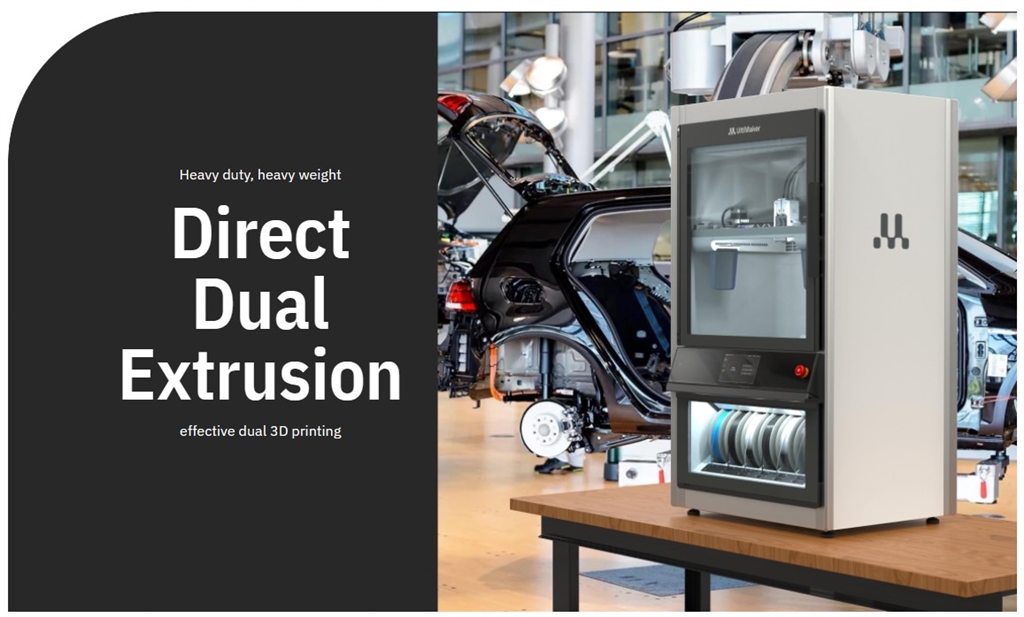

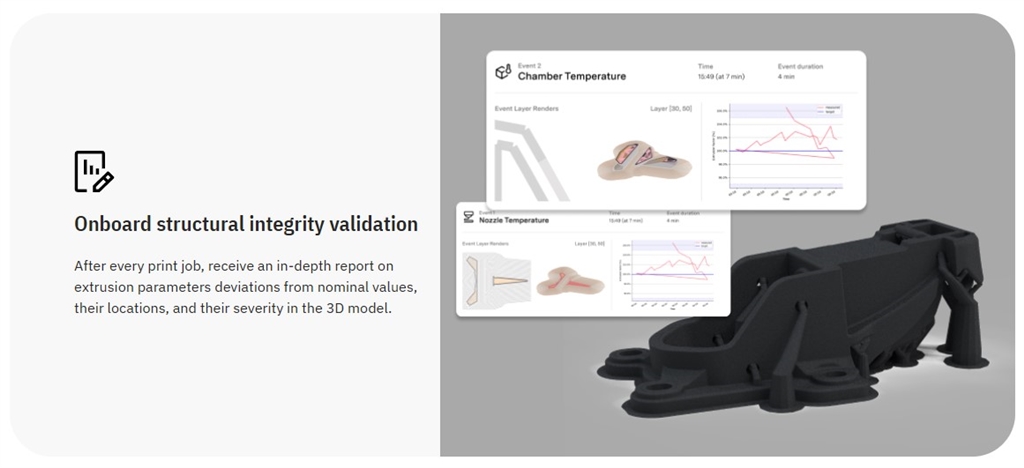

With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.

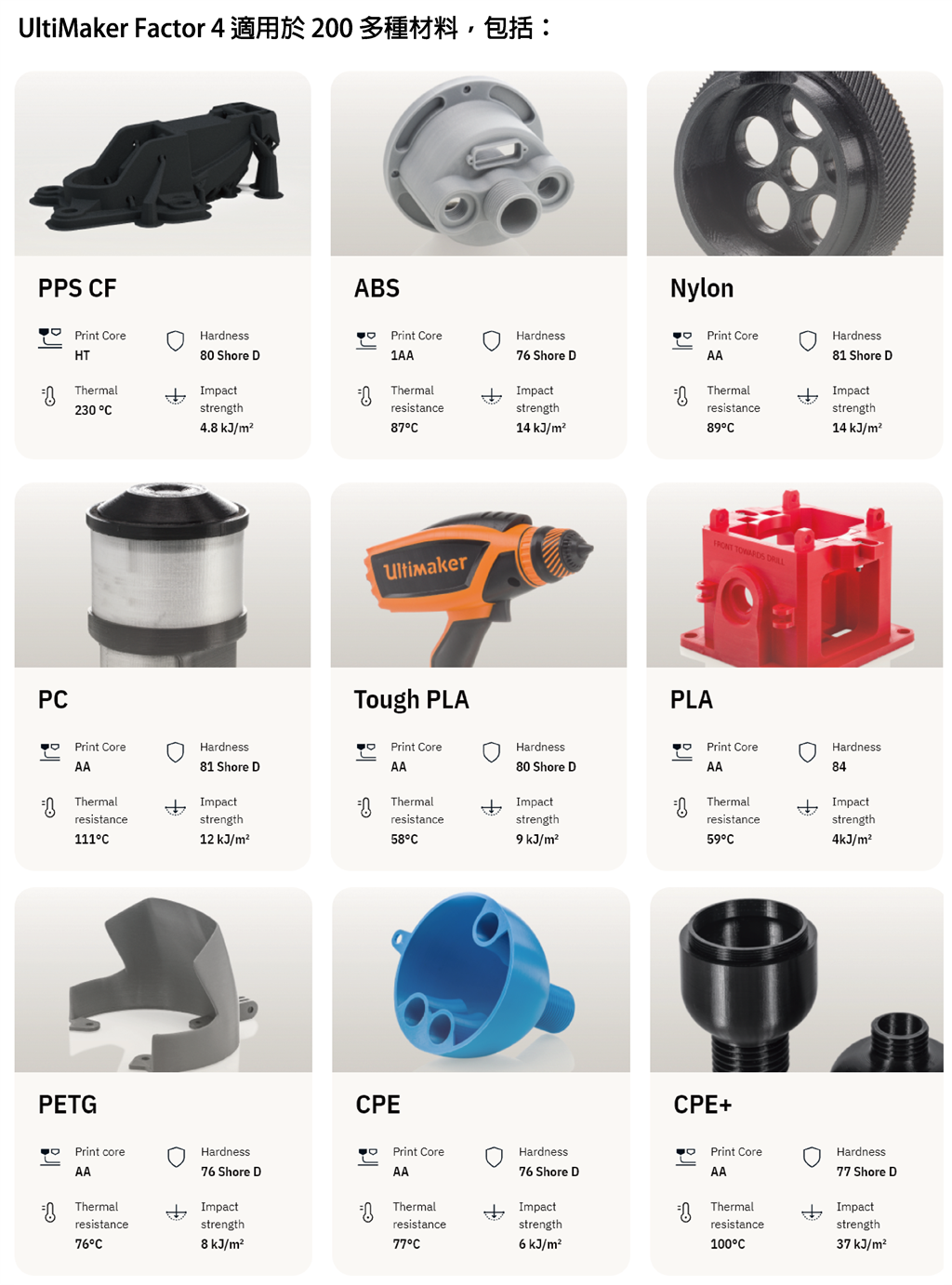

UltiMaker Factor 4 works with 200+ materials including the following:
Contact us to learn more about UltiMaker 3D Printer!
| Dimensions |
330 x 240 x 300 mm（13 x 9.4 x 11.8 inches） |
Assembled dimensions
|
695 x 605 x 1287 mm（27.5 x 24 x 51 inches） |
| Print technology |
Fused Deposition Modeling (FDM) |
| Compatible filament diameter |
2.85 mm |
| Weight |
120 kg（265 lbs） |
| |
|
| Maximum power output |
600 W |
| Weight |
Printer：56.5 kg（125 lbs）
Material Station：1.9 kg（4.2 lbs） |
| Layer resolution |
0.25 mm nozzles：150 - 60 microns
0.4 mm nozzles：200 - 20 microns
0.6 mm nozzles：300 - 20 microns
0.8 mm nozzles：600 - 20 microns |
| XYZ resolution |
6.9、6.9、2.5 microns |
| Feeder type |
Dual-extrusion, direct drive print head and swappable print cores |

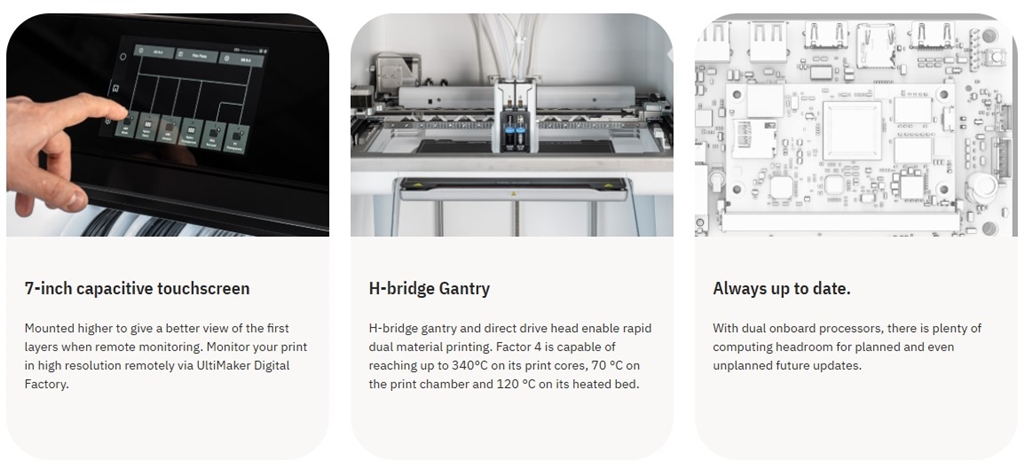

| Display |
7 inches interactive touchscreen (resolution 1024 × 600 px) |

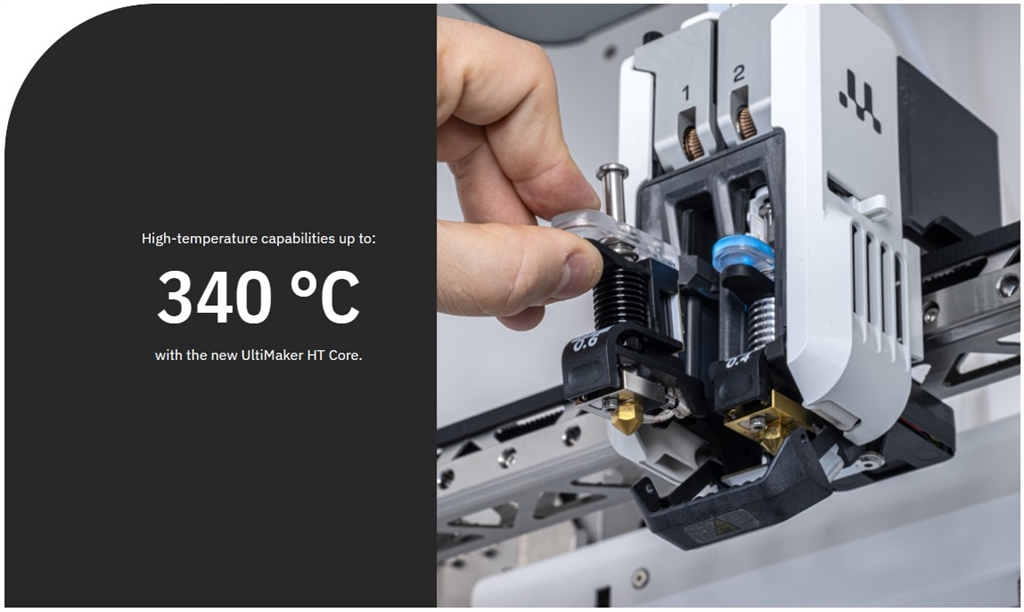

| Nozzle temp. |
180 - 340℃ |
| Build plate |
PEI-coated flexible steel build plate |
| Operating ambient temperature |
18 - 30 °C (64 – 86 °F)，Humidity：30 – 70% RH |
| Supplied free software |
SolidWorks、Siemens NX、Autodesk Inventor |
| Supported file type |
UltiMaker Cura：STL、OBJ、X3D、3MF、BMP、GIF、JPG、PNG Printable formats：G、GCODE、GCODE.gz、UFP |
| Supported OS |
MacOS、Windows and Linux |
| File transfer |
Wi-Fi(2.4 and 5GHz), Ethernet and USB |
