Bambu Lab Laser Module
Compatible with H2D & H2S
A Hard Core Laser Machine
· High-Power 455nm Laser
· High Positioning Accuracy
· Built-In Flame Sensors
· Air Assist Technology
Laser Ready Materials
The laser module can easily process plywood, dark acrylic, cork, metal, PU leather, and a wide array of other materials.

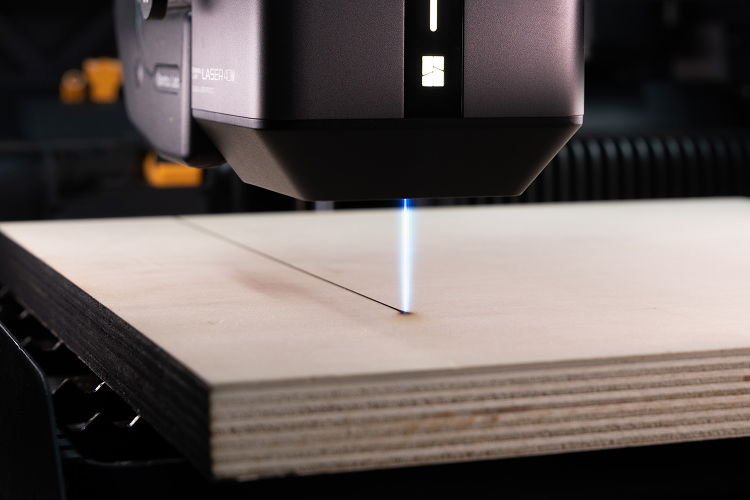

Powerful Cutting Efficiency
With its high-power 455nm laser, 40W laser module achieves blazing speeds up to 1000mm/s and effortlessly cuts through thicker plywood in a single pass.

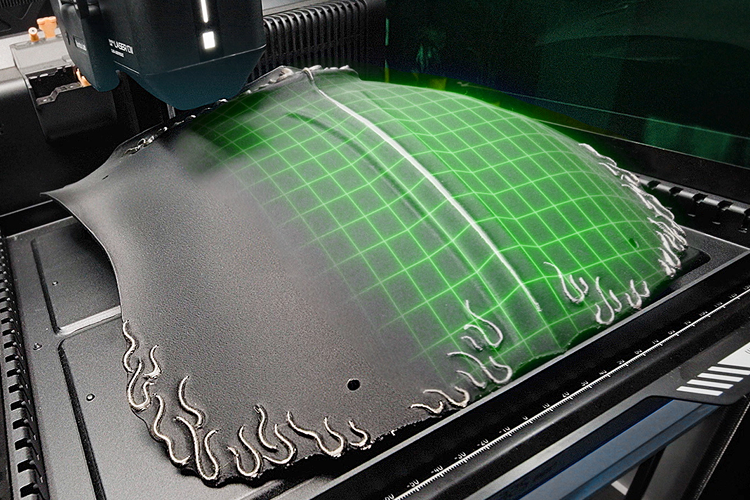

Contact-less 3D Mesh
Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.

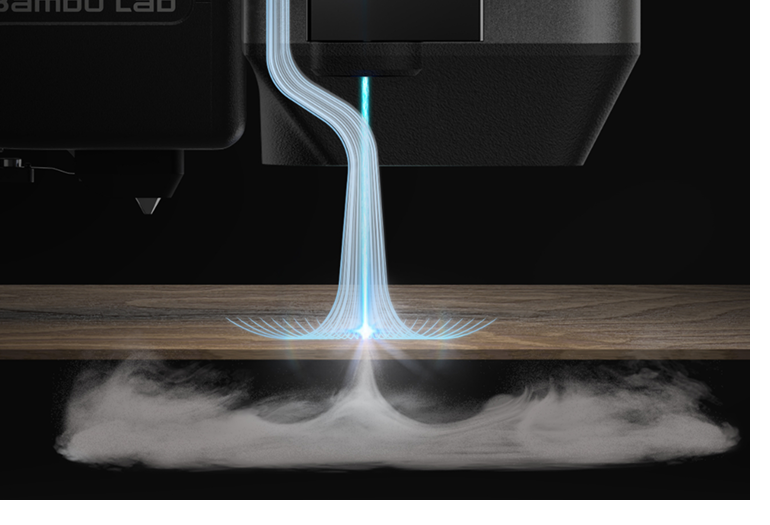

Air Assist
Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.
Flame Sensor
The H2 chamber is equipped with a flame sensor that can instantly detect fire. In the event of a fire, it quickly sends alerts through push notifications and a buzzer, minimizing potential risks.
What is the difference between 40W, and 10W?
Max Cutting Thickness
| Laser Module |
40 W |
10 W |
| Basswood Plywood |
15 mm |
6 mm |
| Birch Plywood |
15 mm |
6 mm |
| Bamboo Board |
6 mm |
3 mm |
| Black Acrylic |
15 mm |
3 mm |
| Cork Sheet |
4 mm |
2 mm |
| Stainless Metal |
0.1 mm |
0.05 mm |
Max Cutting Speed (Single Pass)
| Laser Module |
40 W |
10 W |
| 3mm Basswood |
16 mm/s |
5 mm/s |
| 4mm Basswood |
15 mm/s |
4 mm/s |
| 6mm Basswood |
10 mm/s |
2 mm/s |
| 10mm Basswood |
4 mm/s |
/ |
What's in box
| Laser Module (10 W) |
|
1. 10 W Laser Module - 1 pcs
2. Laser Lens - 1 pcs
3. User manual - 1 pcs
|
1. 40 W Laser Module - 1 pcs
2. Laser Lens - 1 pcs
3. User manual - 1 pcs
|
Frequently Asked Questions
1.What are the differences between the 10W and 40W laser modules? How should I choose？
A: Both the 10W and 40W high-performance blue laser modules process wood, rubber, metal, leather, dark acrylic, and stone. However, due to differences in power output and module size, there are a few key distinctions: maximum cutting thickness for basswood is 6mm(10W) vs 15mm(40W); maximum engraving speed 400mm/s(10W) vs 1000mm/s(40W); and working area 310mm(X)×270mm(Y) with 280mm maximum processing height (10W) vs
Contact us to learn more about Bambu Lab 3D Printers ！
Product Specifications
| Laser Type |
|
|
|
Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
|
|
|
|
|
|
10 W：0.14 x 0.03 mm
40 W：0.14 x 0.2 mm
|
|
|
Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
|
|
|
10 W：400 mm/s
40 W： 1000 mm/s
|
Laser Safety Class for Laser Module
|
|
Overall Laser Safety Class
|
|
|
|
10 W: 310 mm x 270 mm
40 W: 310 mm x 250 mm
|
Ventilation Pipe Adapter Outer Diameter
|
|
