Bambu Lab PA6-GF Filament Series
Product model BL00034
Brand Bambu Lab
Price 470

Quantity

品項
Bambu Lab PA6-GF -黑
Bambu Lab PA6-GF -白

Add in cart Proceed to checkout

Product details
Specification

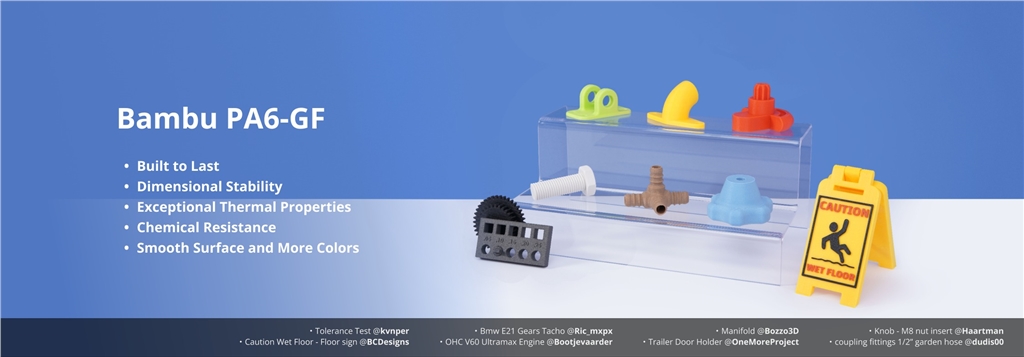

Bambu Lab PA6-GF Series

Bambu PA6-GF, also known as Nylon 6 with Glass Fiber, stands at the forefront of high-performance engineering plastics. Engineered to deliver exceptional strength, durability, dimensional stability. The PA6-GF is also more cost effective when compared to other top tier engineering filaments.

Product Feature:
· Product FeaturesBuilt to Last
· Dimensional Stability
· Exceptional Thermal Properties
· Chemical Resistance
· Smooth Surface and More Colors
· Diameter: 1.75mm +/- 0.03mm

Built to Last

Bambu PA6-GF is exceptionally strong and durable due to reinforced glass fibers, making it the perfect choice for prints that need to withstand heavy use and resist bending or breaking.

* Note: The printed part achieves better toughness after exposure to moisture.

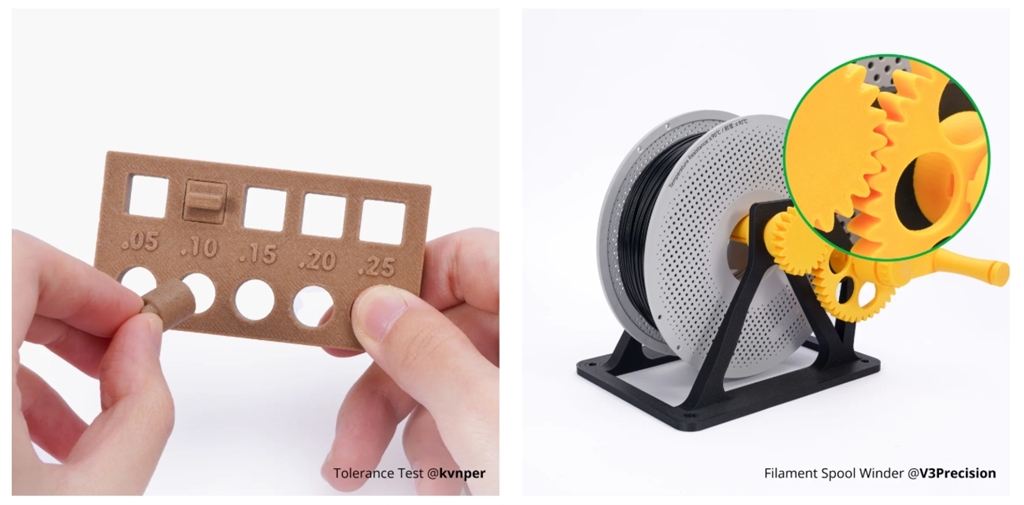

Dimensional Stability

PA6-GF boasts unparalleled dimensional stability thanks to its glass fiber reinforcement, minimizing warping in comparison to standard PA filaments. Print with precise dimensions, even in the most intricate geometries.

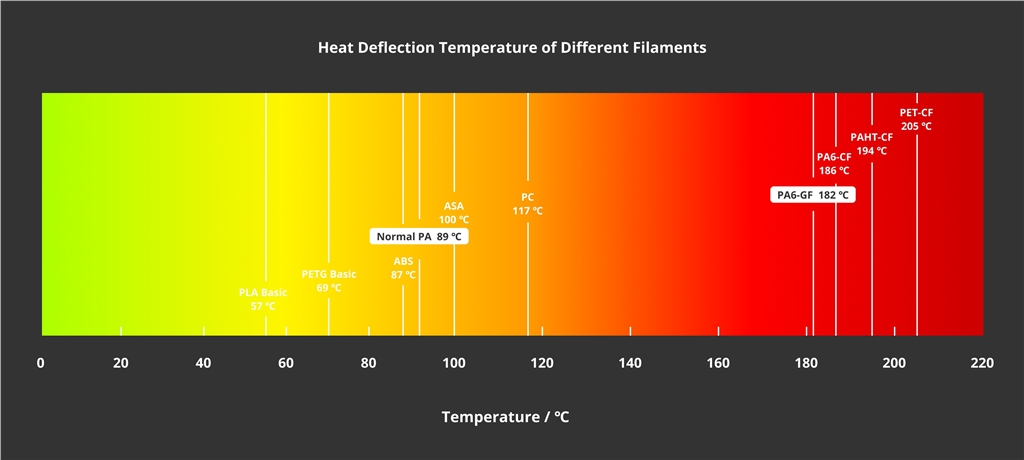

Exceptional Thermal Properties

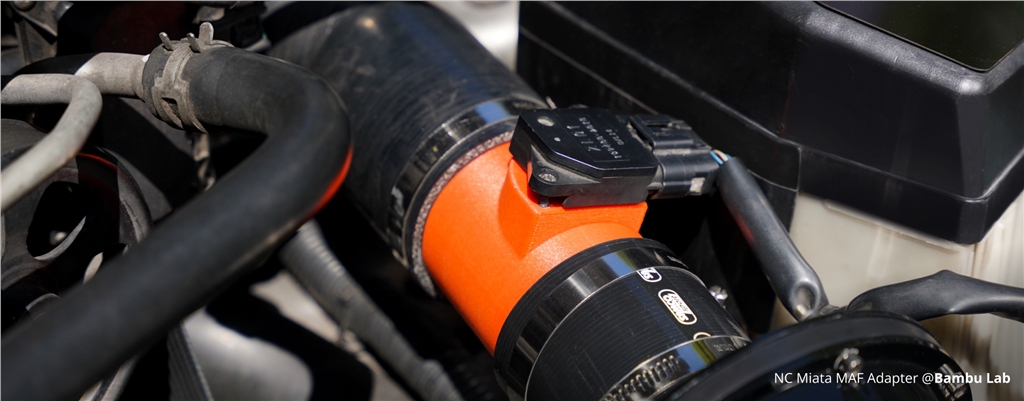

PA6-GF boasts a high heat deflection temperature and superior dimensional stability, enabling it to retain its mechanical properties even under elevated temperatures. This makes it ideal for demanding industrial and automotive applications.

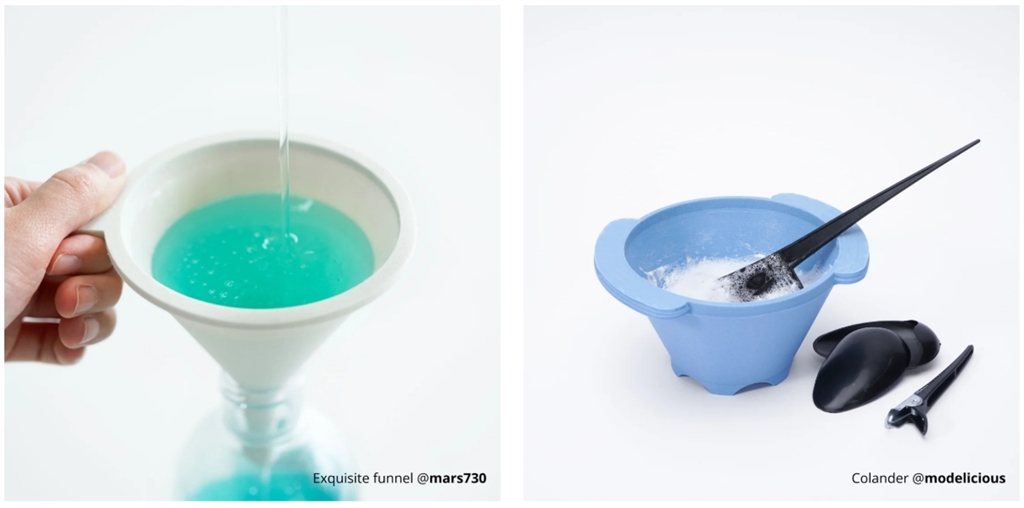

Chemical Resistance

PA6-GF offers excellent resistance to chemicals, oils, and many kinds of solvents, ensuring long-term performance in challenging environments.

Smooth Surface and More Colors

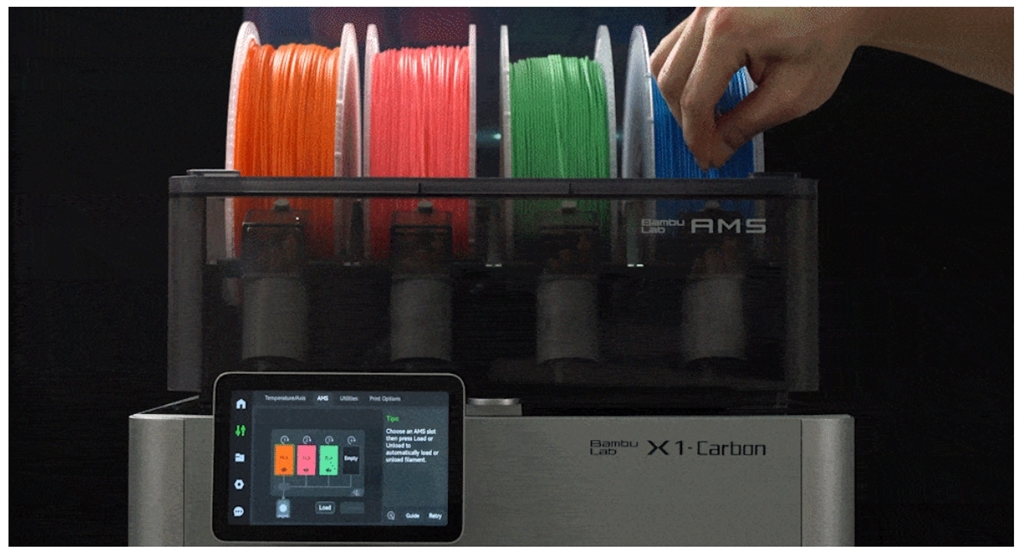

Bambu PA6-GF filaments are compatible with the Bambu AMS system, ready to print in multi-color. The special surface texture also blurs the layer lines, providing a smooth surface quality.

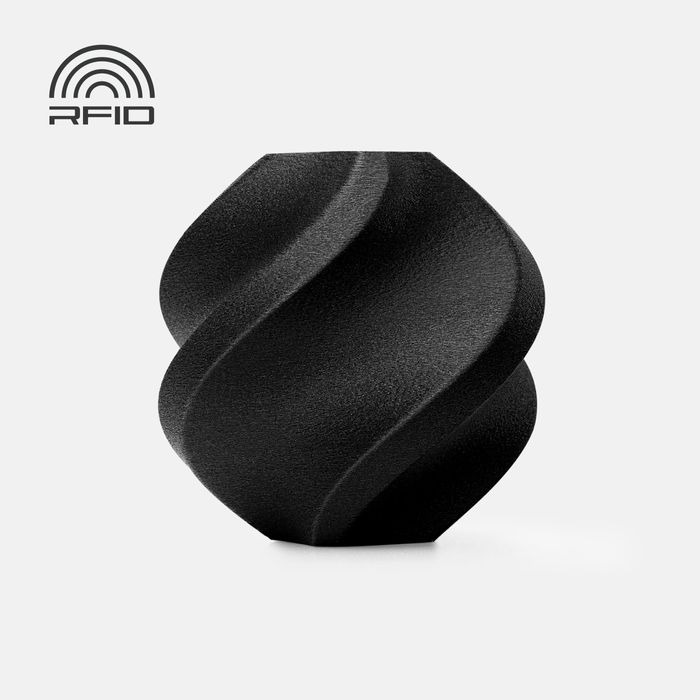

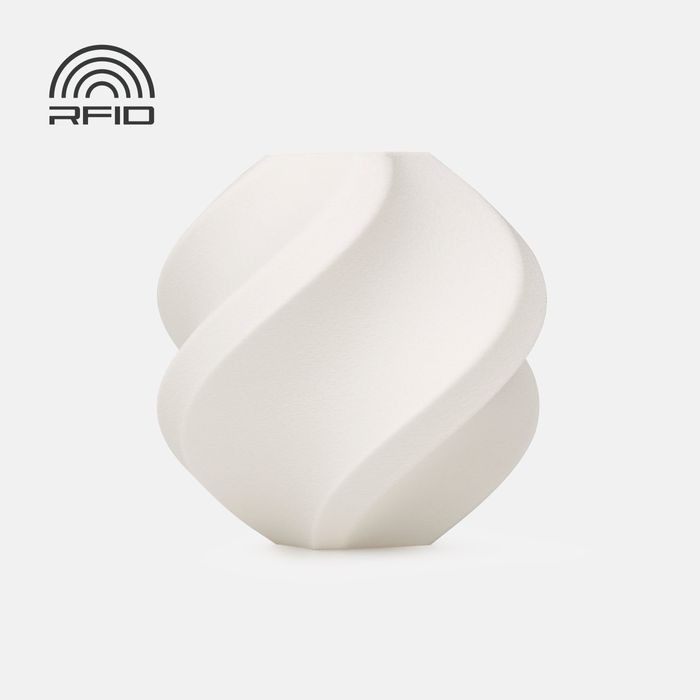

RFID for Intelligent Printing

All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System).

Load and print! No more tedious setting steps.

類別	項目	參數
建議的列印設定	印刷前的乾燥設置	80 ℃，8 - 12 小時
	列印濕度	< 20% RH（密封，含乾燥劑）
	噴嘴溫度	260 - 290 ℃
	床溫（含膠）	80 - 100 ℃
	列印速度	< 130 毫米/秒
物理性質	密度	1.14 克/立方厘米
	軟化溫度	210 ℃
	熱變形溫度	182 ℃
	熔化溫度	219 ℃
	熔融指數	9.0 ± 0.8 克/10分鐘
機械性質	抗拉強度	75 ± 6 兆帕
	斷裂伸長率	3.9 ± 0.8 %
	彎曲模量	3670 ± 140 兆帕
	彎曲強度	120 ± 6 兆帕
	衝擊強度	27.2 ± 2.2 千焦/平方米
