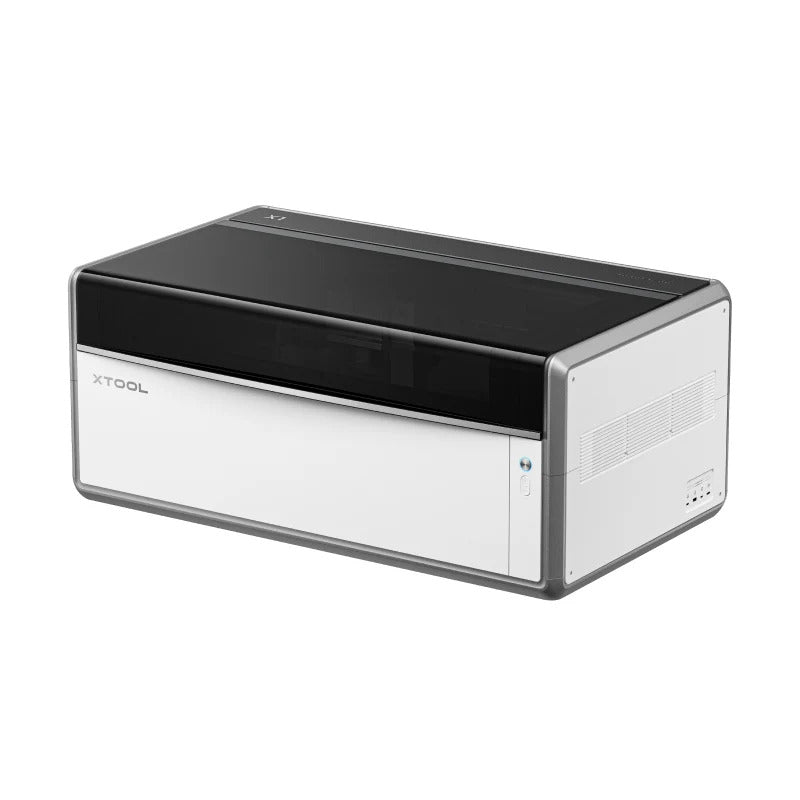

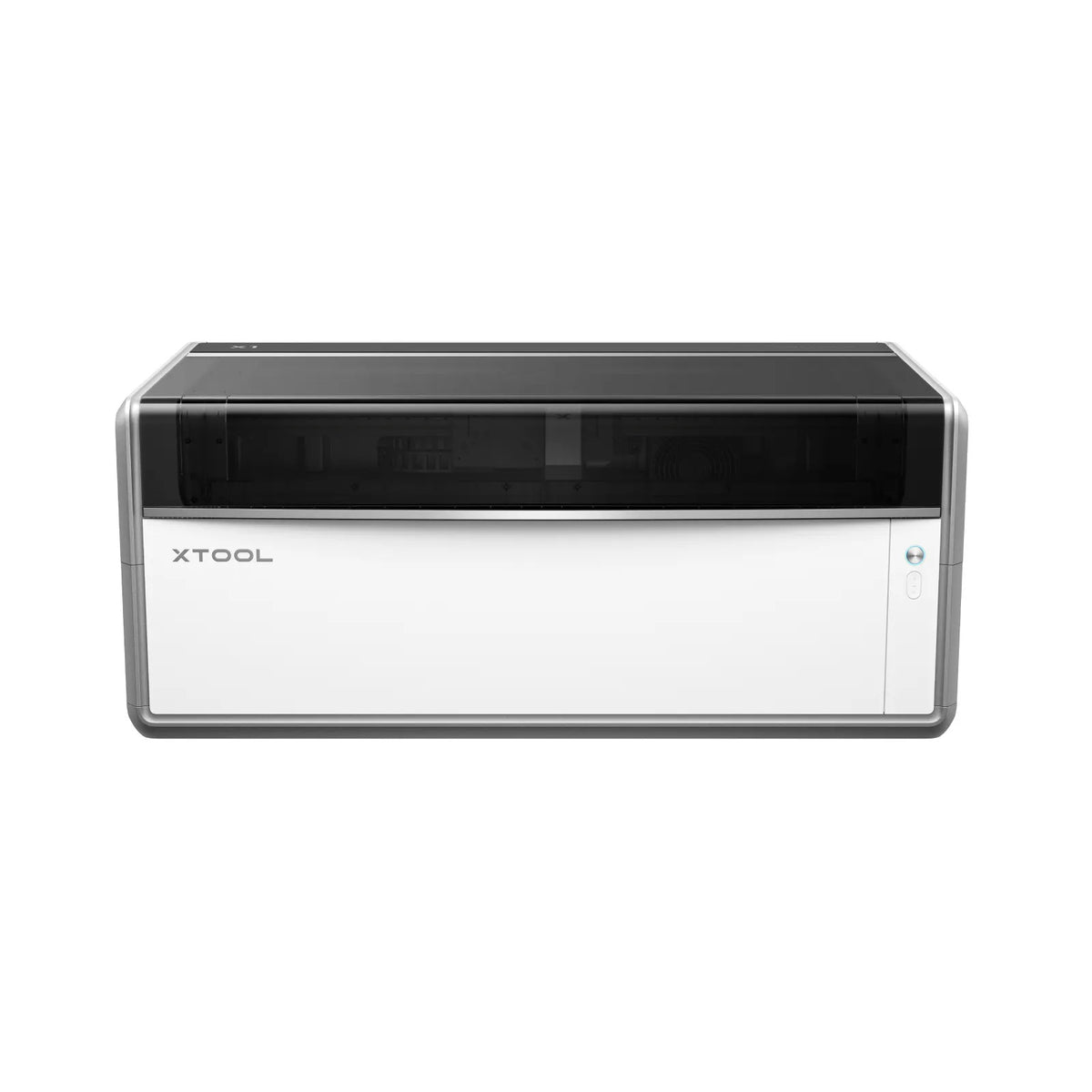

xTool X1 All-in-One Laser

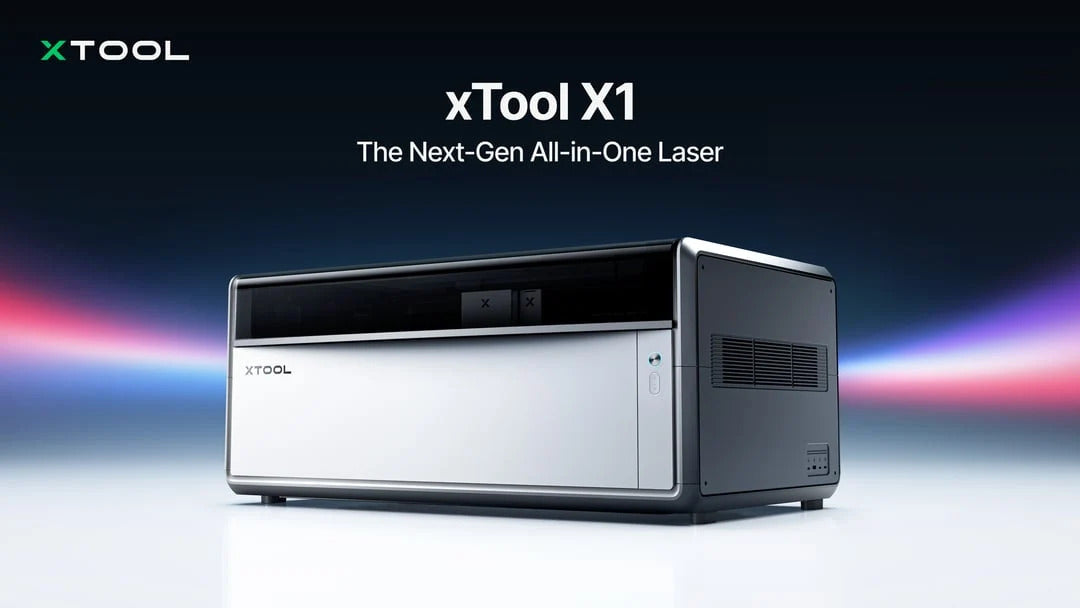

xTOOL X1 Next-Generation All-in-One Laser
From CO₂ cutting and high-speed precision engraving to glass and metal processing, the xTool X1 features an expandable light source and automation system to meet the needs of different materials and projects.
Sold by xTool's Hong Kong distributor, 3DMart HK , which provides sales, technical support, and maintenance services. Before purchasing, you can view 3DMart HK's product repair application process and related regulations.
Watch the xTool X1 Product Video
Learn about the X1's design in terms of speed, processing size, material selection, and work efficiency in the official preview below.
One Platform, Five Expandable Light Sources
The X1 starts with a 55W CO₂ laser. Adding the 20W Diode Galvo module enables high-speed engraving, and it can be further expanded with 5W UV, 60W MOPA, and 30W Fiber light sources. Choose the light source you need on the same platform to expand material and processing applications.
| 55W CO₂ | Standard; suitable for cutting common non-metallic materials such as wood, acrylic, leather, and paper. |
|---|---|
|
20W Diode Galvo |
Optional; suitable for fast, detailed engraving on materials such as wood, leather, dark acrylic, and cardstock. It is also the base module required for UV, MOPA, and Fiber expansion. |
| 5W UV | Optional; the only light source in the X1 that supports glass engraving, and it uses low-heat processing to enable detailed engraving on multiple materials. |
| 30W Fiber | Optional; suitable for metal marking and deep 3D engraving, delivering fine and high-contrast results. |
| 60W MOPA | Optional; suitable for advanced metal processing. Compared with the 30W Fiber, it is described by the manufacturer as offering finer details, faster processing speeds, and better color engraving and embossing effects. |
Combining Galvo Speed with Gantry-Style Large-Area Processing
Hybrid Motion™ is a four-axis flying galvo system that synchronizes the X-Y axis movement of the gantry with dual galvos, providing galvo processing speeds of up to 6,000 mm/s within a large working area. This design allows the same machine to handle larger projects while supporting fast, detailed engraving.
| Galvo processing speed | Up to 6,000 mm/s |
|---|---|
| Flat engraving area | 615 × 320 mm; approximately 24.2″ × 12.6″ on the official website |
| CO₂ processing speed | Up to 600 mm/s; different from the maximum speed of galvo light sources. |
Cutting and Detailed Engraving for Different Processing Needs
CO₂ lasers excel at high-power cutting, while galvo lasers are suitable for fast, detailed engraving. The X1 combines a 55W CO₂ laser with a 20W Diode Galvo (diode galvo) module, enabling both cutting and precision engraving on the same machine.
· 20W Diode Galvo: Capturing Intricate Designs
The 20W Diode Galvo (diode galvo) module offers an engraving speed of up to 6,000 mm/s and a smaller spot size, making it suitable for fast engraving of dense patterns and detailed graphics.
· 55W CO₂: Cutting Thick Materials
The 55W CO₂ light source can be used to cut materials such as wood and transparent acrylic. The manufacturer lists the maximum cutting thickness as 18 mm for basswood and 20 mm for acrylic; actual processing performance will vary depending on the material, settings, and conditions.
LASER SWAP™
Expandable Light Sources for Different Materials
Different materials require different laser characteristics. Based on CO₂ and the 20W Diode Galvo module, the X1 can be further expanded with 5W UV, 60W MOPA, and 30W Fiber via Laser Swap™. You can first choose the configuration based on your current needs and then add light sources as materials, projects, and business needs evolve.
5W UV
Glass, Crystal, and Curved Surface Processing
The 5W UV light source supports glass and crystal processing. The manufacturer states that its glass engraving volume can be up to 12 times that of traditional UV lasers, making it suitable for larger and batch crystal engraving, as well as rotary engraving, glass cutting, and curved surface engraving. These features require the optional UV light source and applicable accessories.
MOPA & FIBER
· Color Metal Engraving, Batch Embossing, and Cutting
The 60W MOPA and 30W Fiber light sources provide metal processing options for the X1, covering large-area color engraving, batch embossing, and metal cutting. The capabilities of the two light sources differ, so they should be selected according to processing needs.
· 60W MOPA Applications
· 30W Fiber Applications
LARGER PROJECTS
Larger Working Area, Supporting Larger-Sized Projects
xTool compares the X1 with a standard Diode Galvo laser: the working area can be up to 4 times larger, the glass engraving volume up to 12 times larger, and the metal embossing area nearly twice as large. The available range varies by light source and processing mode, and glass engraving is also affected by the refractive index and processing depth. Please refer to the individual product specifications.
· Glass Engraving
· Color Metal Engraving
· Metal Embossing
AUTOMATED CREATION SYSTEM™
ACS™: Automatic Positioning and Bed Height Adjustment
ACS™ provides a "Place & Go" workflow. The three-camera system positions the material, and the AutoLift Base automatically adjusts the bed height, reducing manual setup and repeated estimations for more direct preparation.
| Three-camera system | 8MP panoramic camera, 12MP close-up camera, and rangefinder camera. |
|---|---|
| Automatic adjustment | AutoLift Base automatically adjusts the bed height; supports autofocus and LiDAR ranging. |
ATOMM AI
From Graphic Design to 3D Structure Creation
Atomm AI provides design and creation resources, allowing X1 users to explore structural works beyond 2D design. The official website lists over 130 generation tools, 60,000 projects, and 10,000 exclusive creations, along with step-by-step tutorials, material recommendations, and more.
CONFIGURATIONS
How to Choose an X1 Configuration?
1) X1 Single CO₂: Equipped with a 55W CO₂ laser head;
2) X1 CO₂ + Diode Galvo: Equipped with both a 55W CO₂ laser head and a 20W Diode Galvo module.
3) If you plan to add UV, MOPA, or Fiber later, the Diode Galvo module must be equipped. The Single CO₂ version can also have this module purchased and installed later.
Compatible Accessories
| X1 Exclusive Accessories | X1 Intelligent Conveyor Feeder X1 Mobile Work Stand X1 Workplate X1 Honeycomb Panel |
|---|---|
| Other Compatible Accessories | Fire Safety Set / Fire Safety Set 2 Automatic Fire Extinguishing Accessories RA3 / RA2 / RA2 Pro Rotary Accessories SafetyPro™ AP2 / AP2 Max SafetyPro™ IF2 Inline Fan |
Accessories and optional light sources must be purchased separately according to the actual stock packages. The images do not indicate that all accessories are included.
Frequently Asked Questions FAQ
What is the difference between X1 Single CO₂ and X1 CO₂ + Diode Galvo?
X1 Single CO₂: Equipped with a 55W CO₂ laser head.
X1 CO₂ + Diode Galvo: Equipped with both a 55W CO₂ laser head and a 20W Diode Galvo module.
If you need to add UV, MOPA, or Fiber light sources later, you must first equip the 20W Diode Galvo module. The Single CO₂ version can also have this module purchased and installed later.
How should I choose the X1 laser light source?
- 55W CO₂: Suitable for cutting non-metallic materials such as wood, acrylic, leather, and paper.
- 20W Diode: Suitable for high-speed, fine engraving of materials such as wood, leather, dark acrylic, and cardstock.
- 5W UV: The only light source among X1 light sources that supports glass engraving, also suitable for low-heat fine processing.
- 30W Fiber: Suitable for metal marking and deep 3D engraving.
- 60W MOPA: Suitable for advanced metal processing; compared with 30W Fiber, it is described by the manufacturer as having faster processing, finer details, and better performance in color engraving and bas-relief.
Each X1 comes equipped with 55W CO₂; other light sources are optional. UV, MOPA, and Fiber expansions require the 20W Diode Galvo module.
What accessories does X1 support?
X1 Exclusive Accessories:
- Intelligent Conveyor Feeder
- Mobile Work Stand
- Workplate
- Honeycomb Panel
Other Compatible Accessories:
- Fire Safety Set / Fire Safety Set 2 Automatic Fire Extinguishing Accessories
- RA3 / RA2 / RA2 Pro Rotary Accessories
- SafetyPro™ AP2 / AP2 Max Air Purification Equipment
- SafetyPro™ IF2 Inline Fan
The actual accessories included depend on the purchased package.
How should I choose between the X1 and F Ultra series?
X1: Suitable for creators and small workshops who want to start with CO₂ cutting and engraving, create larger works, and gradually expand into glass and metal processing. The maximum processing speed is 6,000 mm/s.
F Ultra Series: Focuses on higher speeds, specialized processing performance, and portability, suitable for advanced metal and glass processing and mobile personalized production; the series' maximum speed can reach 15,000 mm/s, with actual capabilities depending on the model and configuration.
Why do different light sources and processing modes have different maximum working ranges?
Different light sources have different optical characteristics; glass engraving, bas-relief, and color engraving also have different requirements for focal point control, energy distribution, precision, and stability, so the maximum processing range varies.
X1 balances processing precision, structural limitations, and output quality according to each light source and its applications. When choosing a configuration, please refer to the specifications of the corresponding light source and processing mode.
Is the laser safety level of X1 the same under different configurations?
Not necessarily. The Class 1 safety marking on the official website comes with configuration limitations:
- When installing the X1 5W UV Galvo light source, you may come into contact with Class 3B laser radiation during the optical calibration process.
- When used with the X1 Intelligent Conveyor Feeder, the X1 is a Class 4 laser device.
The above configurations are for use by trained professionals only, and must comply with the safety guidelines and protection requirements specified in the user manual.
xTool X1 Product Specifications
Processing Performance
| Laser Type | Standard: 55W CO₂ Optional: 20W Diode / 5W UV / 60W MOPA / 30W Fiber |
|---|---|
| Processing Modes | Laser cutting, laser engraving |
| Supported Materials | Engravable: Wood, acrylic, metal, glass, leather, plastic, rubber, silicone, ceramic, etc. Cuttable: Wood, acrylic, fabric, leather, paper, etc. The appropriate laser light source must be selected according to the material. |
| Working Range | Flat engraving: 615 × 320 mm Glass internal engraving (refractive index 1.54): Upper 50 mm depth: 600 × 300 mm; 50–100 mm depth: 60 × 300 mm Metal embossing: 415 × 225 mm (equipped with Dust Hood for Embossing) |
| Maximum Processing Speed | CO₂: 600 mm/s Diode / UV / MOPA / Fiber: 6,000 mm/s |
| Maximum Cutting Thickness: Basswood | 18 mm |
| Maximum Cutting Thickness: Acrylic | 20 mm |
| Maximum Processing Height | CO₂: 150 mm Diode / UV / MOPA / Fiber: 140 mm |
| Maximum Rotary Engraving Diameter | 110 mm |
Software and Connectivity
| Supported Software | xTool Studio |
|---|---|
| Operating System | Android / iOS / iPad / Windows / macOS |
| Connectivity | USB / Wi-Fi |
| Supported File Formats | SVG / DXF / JPG / JPEG / PNG / BMP / TIF |
| AImake Compatibility | Supported |
Operation and Positioning
| Pre-assembled | Yes |
|---|---|
| Built-in Camera | Three-camera system: 8MP panoramic camera + 12MP close-up camera + rangefinder camera |
| Positioning Method | Camera positioning and point laser rangefinding |
| Focus Mode | Auto-focus |
| Rangefinding System | LiDAR rangefinding system |
| Preview Method | Mobile phone photo preview |
Accuracy
| Laser Spot Size | 55W CO₂: 0.175 × 0.175 mm 20W Diode: 0.16 × 0.14 mm to 0.225 × 0.22 mm 5W UV: 0.017 × 0.017 mm 30W Fiber: 0.05 × 0.05 mm 60W MOPA: 0.04 × 0.04 mm |
|---|---|
| Positioning Accuracy | Close-up camera: center area < 0.3 mm; full area < 0.5 mm Panoramic camera: center area < 0.5 mm; full area < 2 mm |
| Rangefinding Accuracy | ±0.5 mm |
| Camera Resolution | 1,000 DPI |
| Motion Accuracy | 0.015 mm |
Machine and Power Supply
| Safety Rating | Manufacturer's rating: Class 1 Laser Safety¹ |
|---|---|
| Machine Dimensions | 1,000 × 580 × 420 mm (in the order listed on the official website) |
| Machine Weight | Main unit: 60 kg |
| Maximum Machine Input Power | CO₂: 550W Diode: 65W UV / Fiber: 192W MOPA: 300W |
| Power Adapter Input Voltage | 100–240 V AC, 50/60 Hz |
| Storage Temperature | Main unit: -10–60 °C Laser module: 0–35 °C |
| Operating Temperature | Main unit: 0–35 °C CO₂ module: 0–35 °C 20W Diode module: 0–35 °C 5W UV module: 10–35 °C |
¹ The safety rating follows the manufacturer's specification table; the manufacturer's operating requirements for the corresponding configuration must be followed when in use. The appropriate laser light source, parameters, and accessories must be selected for material processing.
Source: xTool X1 Official Product Page. Product configurations and specifications are subject to the manufacturer's latest announcements.
