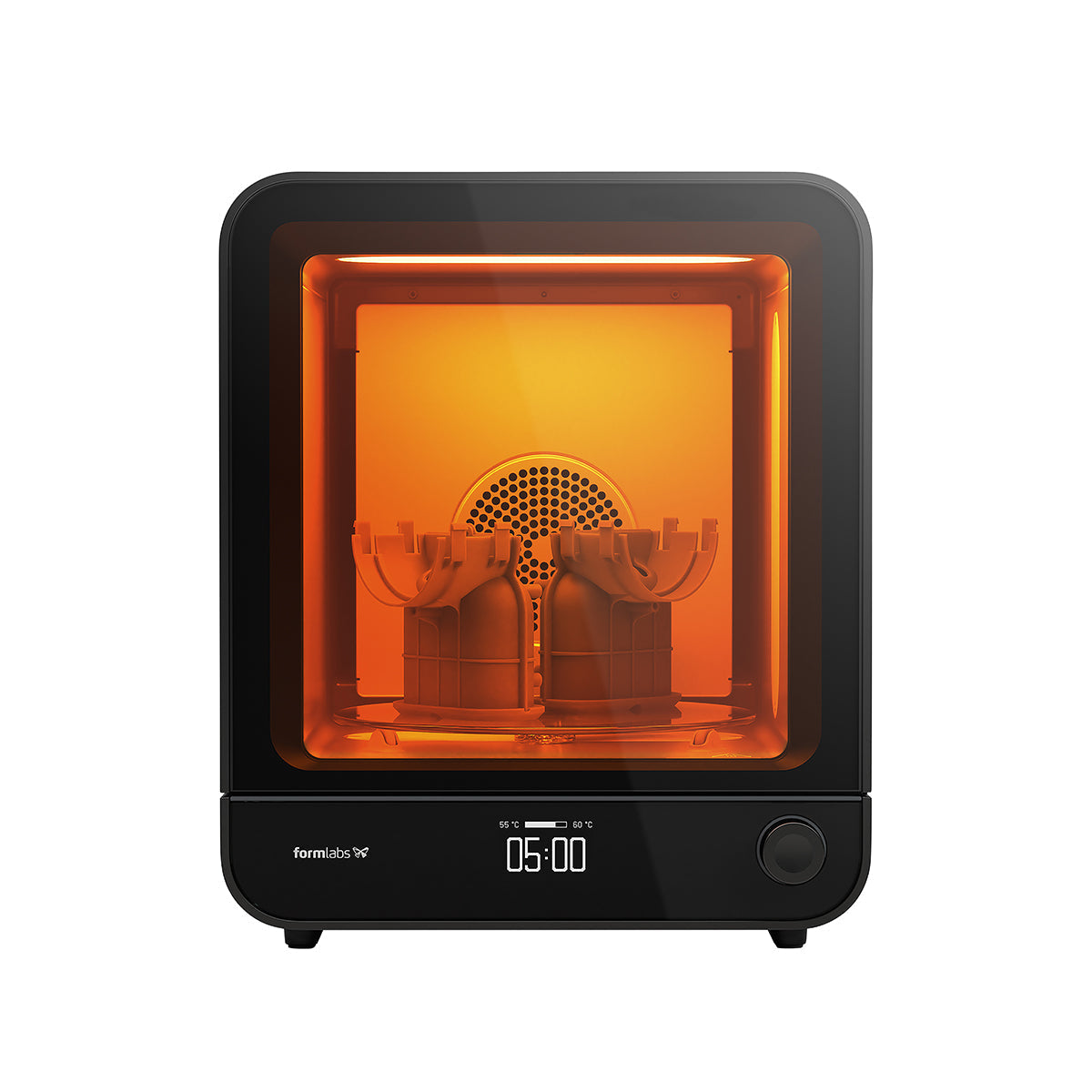

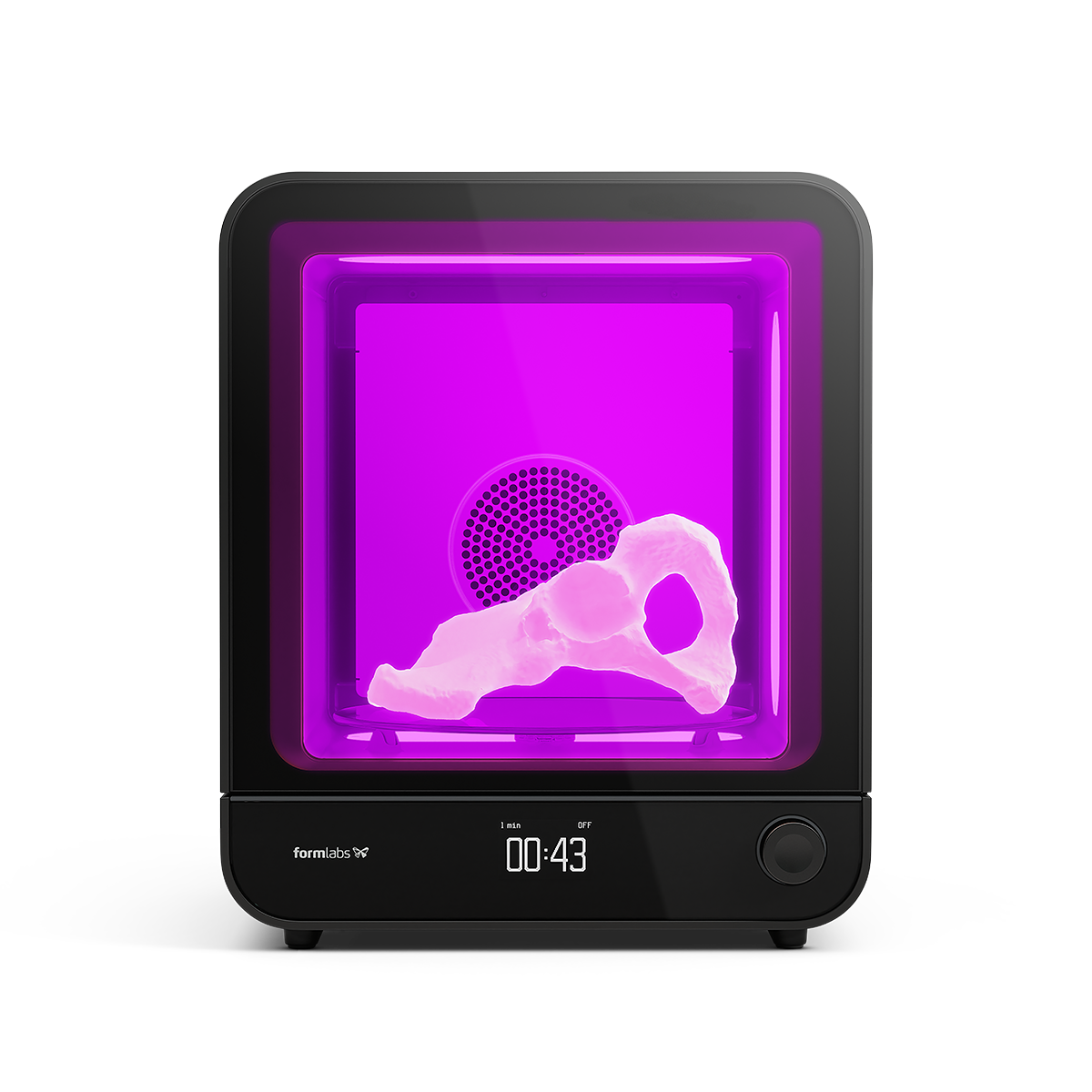

Formlabs Form Cure V2 230V Heated Curing Unit

Formlabs Form Cure V2 230V Heated Curing Unit

Formlabs Form Cure V2 is an SLA post-curing unit that utilizes powerful LEDs and convection heating to achieve optimal mechanical properties for parts quickly and precisely.
The new generation of curing units, Form Cure V2, precisely combines heat and 405 nm light to produce robust, strong prints with unprecedented speed and consistency. It post-cures Form 4/B prints in just 60 seconds, significantly enhancing the strength and toughness of the final parts, creating a harder and less adhesive surface.

Form Cure V2 precisely combines heat and 405 nm light to produce robust and durable parts with unprecedented speed and consistency. You can post-cure Form 4/B prints in 60 seconds, with four times the UV power, five times faster heating, and a 1.3 times larger chamber size. Simply select a pre-validated preset for Formlabs' 45+ materials to begin curing. Advanced users can also customize time and temperature as needed.
Post-curing completes the chemical reactions initiated during the printing process, enhancing part strength, toughness, heat resistance, and creep resistance, while creating a harder and less adhesive surface.
Biocompatible materials require post-curing to meet regulatory safety standards.

Cure most parts in 60 seconds

Rapid UV curing with instant heating ensures consistent and validated results, and easily post-cures large Form 4 prints.

Extremely Fast Curing, Nearly Instant Heating
Post-cure general purpose resins in just 60 seconds, and engineering resins in 15 minutes, with heating to 60°C in 60 seconds (230V version).

Consistent and Validated Results
A 48-LED array and convection heating system ensure uniform UV and heat exposure, providing 14.5 mW/cm² irradiance and temperatures up to 100°C.

Post-Cure Large Form 4 Prints
Designed to accommodate any part from Form 4, it can hold parts up to 200 x 125 x 245 mm on a 235 mm turntable.

Simpler Than Ever
New sleek design features pre-programmed cure cycles, an easy-to-clean glass turntable, and a side-hinged door for operation in tight spaces.

Lightning Fast Curing

Form Cure V2 is designed to provide fast, consistent, and high-quality post-curing results.

Reaches Temperature:
60°C in 60 seconds
80°C in 150 seconds
Fast Curing:
General purpose resins in 60 seconds
Engineering and biocompatible resins in 3-15 minutes

Precise and Consistent Results

Reaches Temperature: 100°C
Uniform irradiance of 14.5 mW/cm²

Suitable for Large Form 4 Parts

235 mm rotating turntable

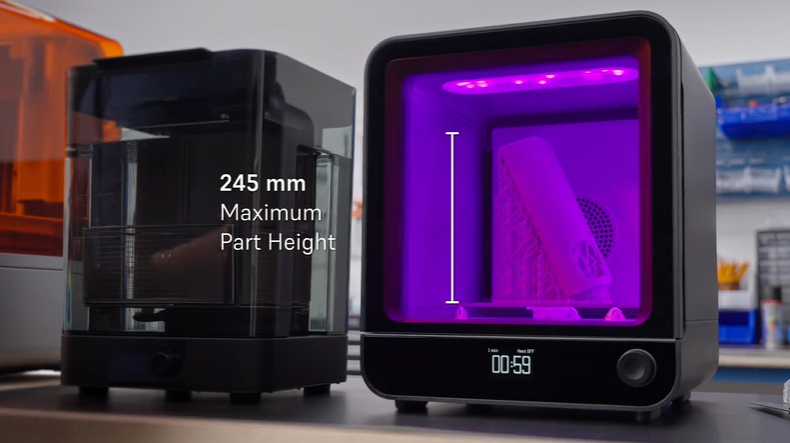

Maximum part height 245 mm
