Shining EinScan-SP V2 3D Scanner
Choose Add-on:
Couldn't load pickup availability
Shining EinScan-SP V2 3D Scanner
Shining EinScan-SP V2 3D Scanner
Shining EinScan-SP V2 3D Scanner

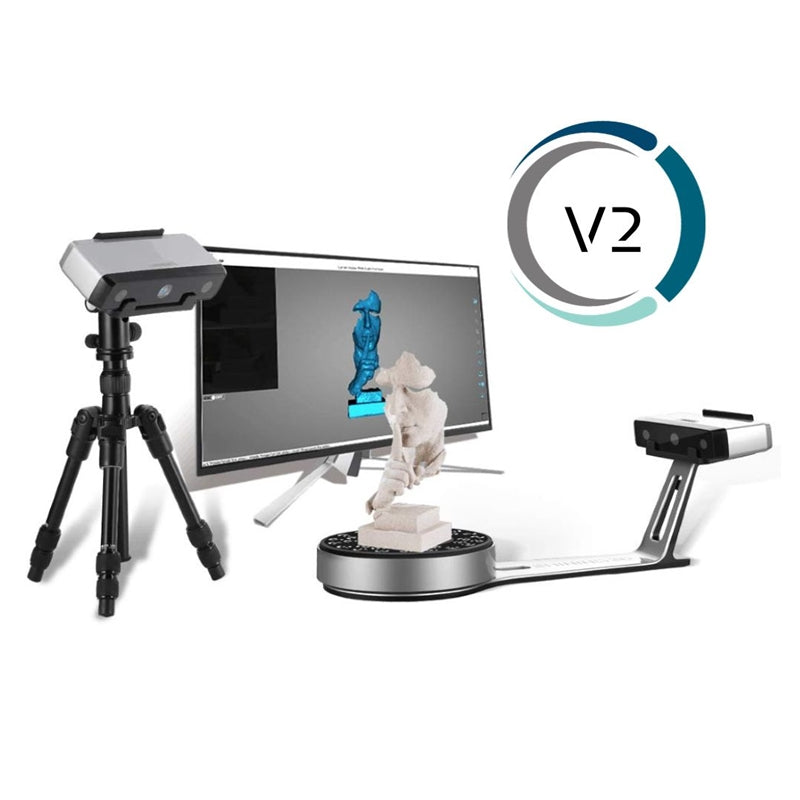

Shining EinScan-SP V2 3D scanner features both automatic and fixed scanning modes, with unlimited scanning range!
Product Features
．Shining EinScan-SP V2 3D scanner undergoes professional and rigorous accuracy calibration certification.
．Achieves 0.05mm high-precision, high-speed, and high-resolution scanning.
．Meets the demands of various reverse engineering, high-quality 3D design, and 3D printing applications.
Broad scanning range from small to large
Depending on the object size, you can use automatic scanning with a turntable or manual scanning with a tripod.
Simple operation, faster scanning speed
Shining EinScan-SP 3D scanner offers one-button scanning, with simple settings for automatic calibration and fast scanning (approximately 1 second for a single scan, 360-degree scan in automatic mode takes only 45 seconds).
With the Shining EinScan-SP 3D scanner, you can easily perform reverse engineering design in the office and experience fast, high-quality scanning. Contact us now to learn more about 3D scanners.
Fine Details, Multiple Modes
EinScan-SP V2 provides highly detailed data reproduction and features multiple alignment modes, including markers, turntable markers, and manual alignment.

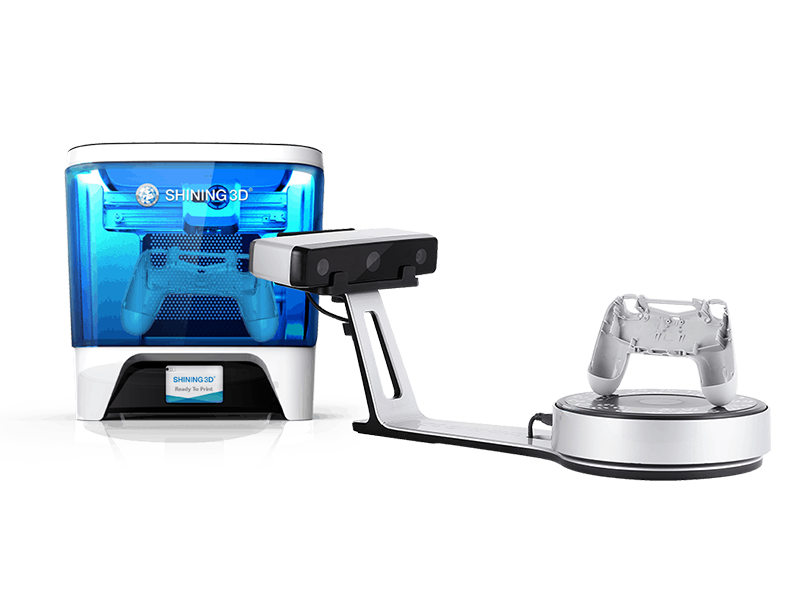

Compatible with all 3D printers
After scanning, the EinScan-SP generates dense mesh 3D data and is compatible with various 3D printers.

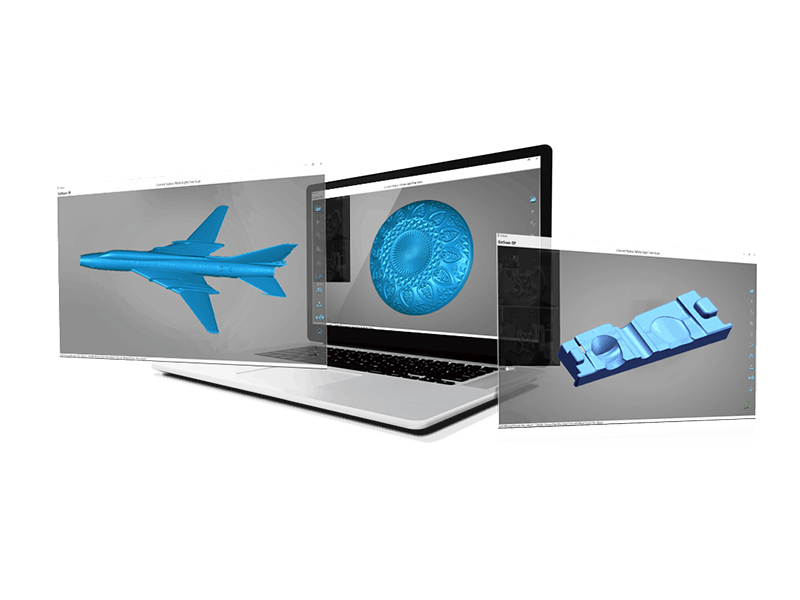

Extensive Post-Processing Features
The EinScan-SP V2 software includes hole filling, smoothing, and sharpening functions, as well as coordinate data post-processing capabilities, providing perfect 3D data for subsequent applications.

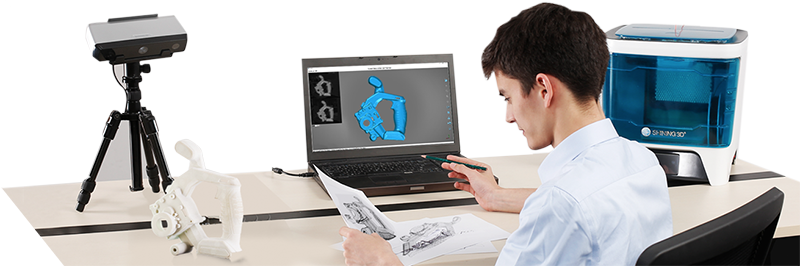

Various Applications
Experience fast scanning, making high-resolution scanning easily accessible to everyone, suitable for office reverse engineering and design.
Perfect for macOS
EXScan S
．Supports macOS
．Intuitive trackpad gestures
．Background cropping feature
．Fast alignment
．New UI interface
．Multiple alignment modes
Actual scanned model examples: Model (1), Model (2), Model (3), Model (4)
Click here to download User Manual (1)
Click here to download User Manual (2)
Product Specifications
| Scan Mode | Fixed Scan / Auto Scan |
|---|---|
| Alignment Mode | Manual alignment, Feature alignment, Turntable alignment, Marker alignment, Turntable coded target alignment |
| Scan Accuracy | ≤0.05mm |
| Minimum Scan Volume | 30 x 30 x 30 mm |
| Maximum Scan Volume | Fixed Scan: 1200×1200×1200 mm Auto Scan: 200×200×200 mm |
| Single Shot Range | 200 x 150 mm |
| Single Scan Speed | <1 Second |
| 360-degree Scan Speed | <45 Seconds |
| Point Distance | 0.17〜0.2 mm |
| Color Scan | Supported |
| Output Format | OBJ, STL, ASC, PLY, 3MF |
| Camera Resolution | 1.3MP |
| Light Source | White LED |
| Working Range | 290〜480 mm |
| Power Supply | 12V, 3.33A, 40W |
| Computer Requirements |
Operating System: Win7, 8, 10 (64bit) CPU: Intel Dual Core i5 or higher RAM: >16 GB Graphics Card: Nividia GTX660 or higher Video Memory: >2GB USB: 1×USB 2.0 or 3.0 |
| Scanner Dimensions | 570 x 210 x 210 mm |
| Package Dimensions | 640 x 410 x 230 mm |
| Weight | 4.2 KG |
| Certificates | CE, FCC, ROHS, WEEE |
| Calibration Board | High-precision calibration board |
| Turntable | With coded targets |
| Turntable Load Capacity | 5 KG |
| Accessories | Tripod, Solid Edge Shining 3D Edition Software |
