AESUB Scan Reference Net

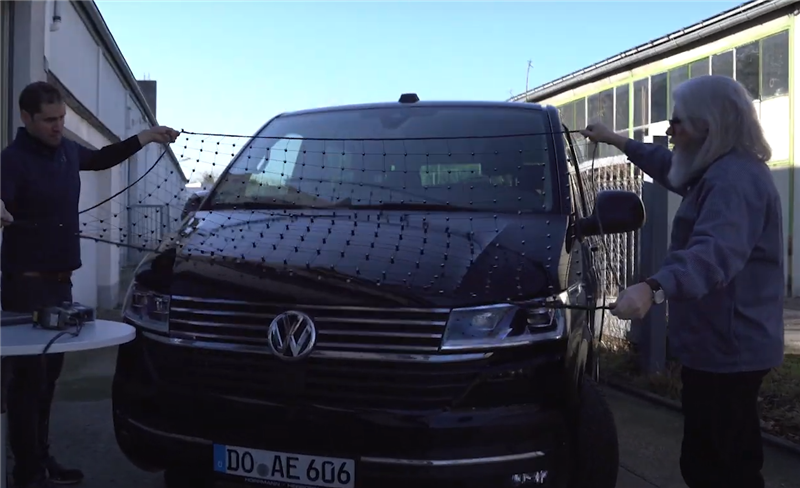

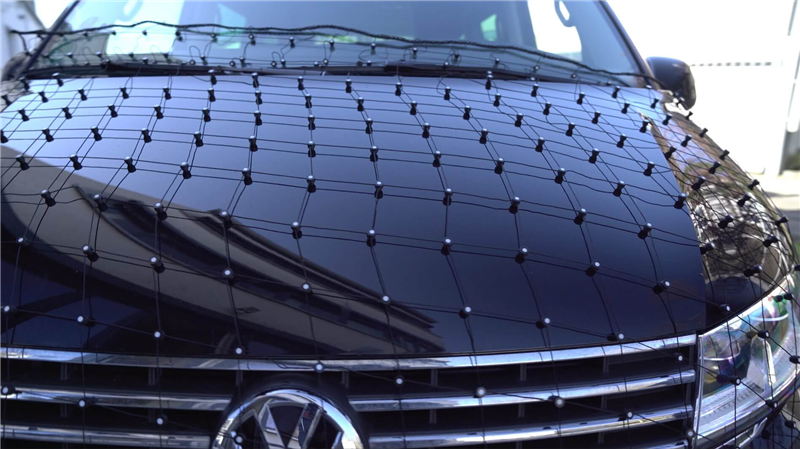

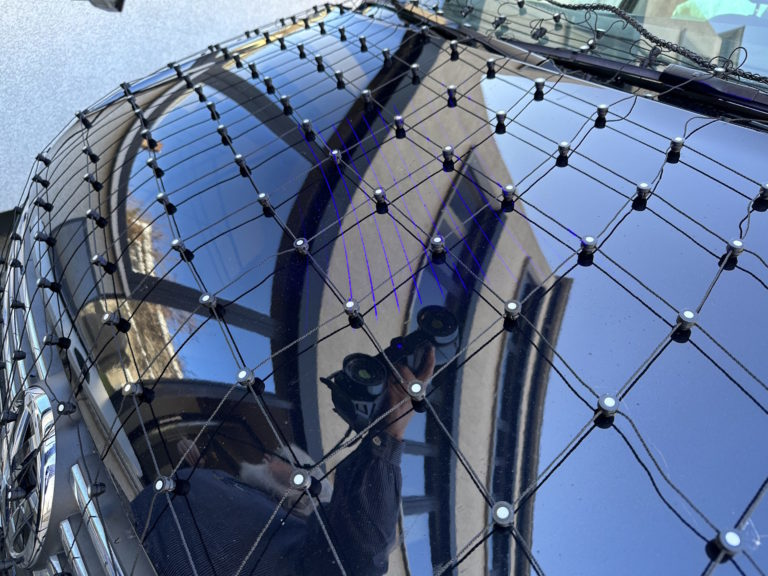

AESUB Reusable Scan Reference NetHow to scan large objects? Using the AESUB Scan Reference Net makes scanning large parts, engine covers, or vehicles faster and simpler. Just lay the net flat on the surface of the object so that the reflective dots cover the entire area. This is an efficient and environmentally friendly alternative to traditional adhesive scan targets.
However, a suitable scanner is also a necessary condition for successful scanning. Recommended 3D scanners include: SHINING 3D - EinScan HX Scanner, SHINING 3D - EinScan H2 Scanner, and SHINING 3D - EinStar Handheld 3D Full-Color Ultra-High-Speed Scanner.
Product Features:
- Eliminates the hassle of sticking and removing targets; one net does it all.
- Suitable for metal, non-metal, and medium-to-large components.

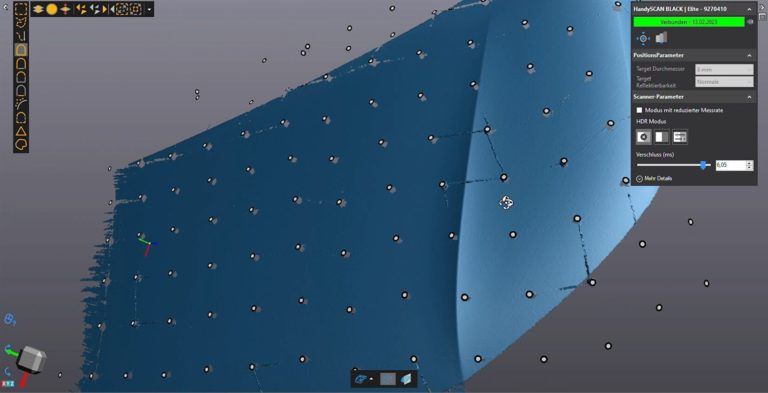

- Black net lines can be easily removed in the software.
- Features 300 scan reference points for multi-angle rapid scanning.
- Eco-friendly and infinitely reusable.
- Magnets attached to the base of each point ensure stable positioning.
- Perfectly compatible with all AESUB scanning sprays.
Product Specifications
| Reference Points | 300 points |
|---|---|
| Diameter | 6 mm |
| Dimensions | 1.5 x 2.5 meters |
